- Place of Origin: China
- Brand Name: vtop laser

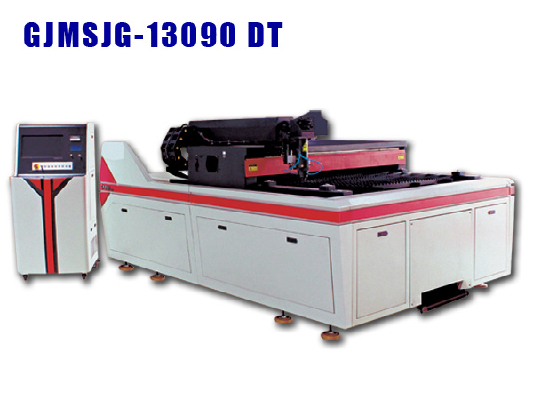

- Model Number: GJMSJG- 13090 DT
1) It is designed and produced by industrial machine tool. It is stable and durable and the processing is fast and precise.
2) It adopts auto following focus device which realizes dynamic focus continuous cutting on materials with different thickness or uneven surface.
3) The working table is equipped with universal wheel and pneumatic loading device (optional), which saves human labor, avoids metal sheet damage and ensures good cutting quality.
4) Movable remote controller is convenient for operation. Conveyor rewinding device realizes convenient material collecting.
5) Standard collocation of automatic nesting software (do nesting on the remaining materials) and optional collocation of high speed pattern copying, auto-recognition cutting, polishing & painting and metal etching save materials and improves working efficiency.
- Place of Origin: China
- Brand Name: vtop laser
- Model Number: GJMSJG- 13090 DT
Laser type | YAG lamp pump solid state laser generator |
Laser wavelength | 1064nm |
Laser power | 800W 650W |
Cutting area | 1500mm x 3000mm, 1300mm x 2500mm, 1300mm x 900mm |
Working table | Saw tooth working table |
Motion system | Digital offline control system; YASKAWA servo motor; ABBA high precision ball screw; REXROTH linear guide transmitting system |
Min kerf | 0.15mm (1mm thickness) |
Min bore diameter | 0.2mm to 0.5mm |
Cutting speed | 0~50 mm/s |
Repeating position accuracy | ±0.1mm |
Max. cutting thickness (Air) | Ferrous metal: 10mm carbon steel, 8mm stainless steel Nonferrous metal: 4mm aluminum, 3mm brass & copper) |
Suggested cutting thickness | Ferrous metal: 0.5-6mm carbon steel, 0.5-6mm stainless steel Nonferrous metal: 0.5-4mm aluminum, 0.5-3mm brass & copper (do not suggest large batches of cutting these 3 high reflective materials) |
Cooling system | External constant-temperature water chiller system |
Software | Golden Laser Auto Nesting Laser Cutting Software |
Format supported | PLT, DXF, AI, DST etc |
Other standard collocation | Remote controller, drawer rewind device |
Optional collocation | Integrated rotary device (X axis); detached rotary device (Y axis); pneumatic loading device |
Auxiliary gas | Dry filter compressed air: carbon steel, stainless steel, aluminum, brass and copper N2 : stainless steel when need shiny cutting edge |
Suggested auxiliary gas | Dry filter compressed air |
Total power | 22KW |
Power supply requirement | 380V± 5% 50/60HZ 100A (3 phase 5 wire) |
Floor space requirement | 5.5m X 3.5m |
Workshop environment | Temperature 0-40 Centigrade, Humidity 45-85%, good ventilation, no corrosive gas, etc |
