- Place of Origin: China
- Brand Name: vtop laser

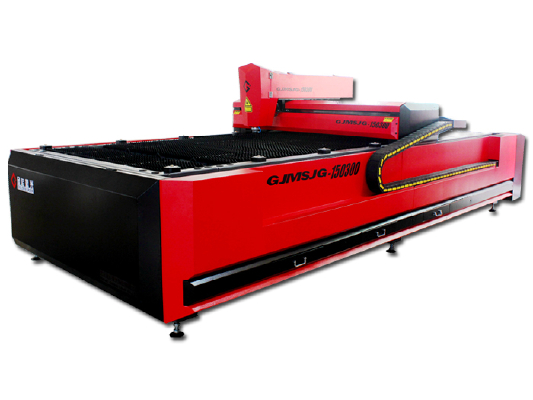

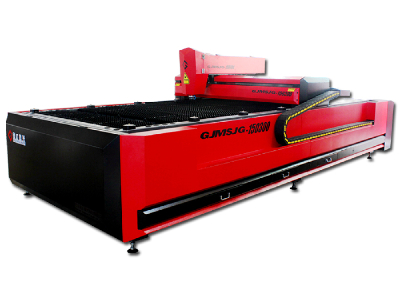

- Model Number: GJMSJG-150300 DT
1). Stable and good deformation resistance capability. Aging process technology ensures long-last duration and accuracy of the machine.
2). Medium power YAG lamp pump laser generator. Cutting any graphics of sheet metal within the size of 1500mm×3000mm. Suitable for large-scale metal sheet cutting. Processing is fast and precise.
3). Auto following focus device realizes dynamic focus continuous cutting materials with different thickness. Drawers rewind device realizes convenient material collecting.
4). The working table equipped with universal wheel saves human labor, avoids metal sheet damage and ensures good cutting quality.
5). Separate digitalized operating table and movable remote controller is convenient for operation. There are several input modes of USB flash disk data copy, USB cable data transmission, network connections and other data transmission methods. One computer can control several laser machines, saving cost.
6). Standard collocation of automatic nesting software save materials and improves working efficiency.
- Place of Origin: China
- Brand Name: vtop laser
- Model Number: GJMSJG-150300 DT
Laser type | YAG lamp pump solid state laser generator |
Laser wavelength | 1064nm |
Laser power | 800W 650W |
Cutting area | 1500mm x 3000mm, 1300mm x 2500mm, 1300mm x 900mm |
Working table | Saw tooth working table |
Motion system | Digital offline control system; YASKAWA servo motor; ABBA high precision ball screw; REXROTH linear guide transmitting system |
Min kerf | 0.15mm (1mm thickness) |
Min bore diameter | 0.2mm to 0.5mm |
Cutting speed | 0~50 mm/s |
Repeating position accuracy | ±0.1mm |
Max. cutting thickness (Air) | Ferrous metal: 10mm carbon steel, 8mm stainless steel Nonferrous metal: 4mm aluminum, 3mm brass & copper) |
Suggested cutting thickness | Ferrous metal: 0.5-6mm carbon steel, 0.5-6mm stainless steel Nonferrous metal: 0.5-4mm aluminum, 0.5-3mm brass & copper (do not suggest large batches of cutting these 3 high reflective materials) |
Cooling system | External constant-temperature water chiller system |
Software | Golden Laser Auto Nesting Laser Cutting Software |
Format supported | PLT, DXF, AI, DST etc |
Other standard collocation | Remote controller, drawer rewind device |
Optional collocation | Integrated rotary device (X axis); detached rotary device (Y axis); pneumatic loading device |
Auxiliary gas | Dry filter compressed air: carbon steel, stainless steel, aluminum, brass and copper N2 : stainless steel when need shiny cutting edge |
Suggested auxiliary gas | Dry filter compressed air |
Total power | 22KW |
Power supply requirement | 380V± 5% 50/60HZ 100A (3 phase 5 wire) |
Floor space requirement | 5.5m X 3.5m |
Workshop environment | Temperature 0-40 Centigrade, Humidity 45-85%, good ventilation, no corrosive gas, etc |
